Hue slider

The hue slider draws a rainbow on a canvas as a run of filled bands, one band for every two units of width, and lays a marker over the current hue. The track is 300 units wide and 16 units high by default.

The strip is the control, and no native slider sits under it. A touch on the strip sends your screen a {:drag, tag, payload} message with the touch position, and hue_at/2 converts that position to a hue. The phase field reports began on touch-down, dragging while the finger moves and ended on release. A tap therefore sets the hue.

The screen owns the state. The slider draws the value you pass, so you assign the new hue in handle_info/2 and the marker moves. Set label for a caption above the track and show_value for a readout such as 210°. With both, the label sits on the left and the readout on the right.

Run this from your Mob app's root to add the component to lib/<app>/components/:

mix mishka.ui.gen.mob hue_slider

The generator registers the tag, so you can use it in ~MOB markup. It also copies the shared Color and Event helper modules. The examples on this page use the mishka_ prefix of the showcase app (--module-prefix mishka_), so the tag is <MishkaHueSlider>. Without a prefix, the tag is <HueSlider>.

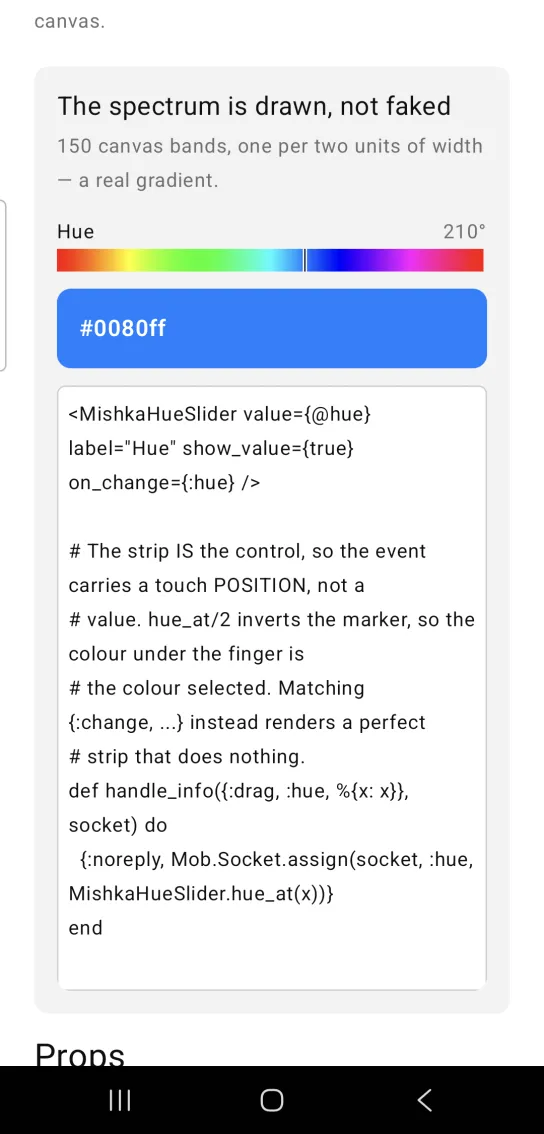

The rainbow is 150 canvas bands, so the track is a real gradient. This example sets label and show_value, and converts the touch position with hue_at/2 in handle_info/2. The colored box under the slider in the screenshot belongs to the showcase page and is not part of the component.

Hue slider with a drawn spectrum

LTR RTL

Preview

Show the whole example Show less

<MishkaHueSlider value={@hue} label="Hue" show_value={true} on_change={:hue} />

# The strip IS the control, so the event carries a touch POSITION, not a
# value. hue_at/2 inverts the marker, so the colour under the finger is
# the colour selected. Matching {:change, ...} instead renders a perfect
# strip that does nothing.
def handle_info({:drag, :hue, %{x: x}}, socket) do
  {:noreply, Mob.Socket.assign(socket, :hue, MishkaHueSlider.hue_at(x))}
end

The module exports two helpers. Call them from your screen.

on_change sends {:drag, tag, %{x:, y:, dx:, dy:, phase:}} to the screen that rendered the slider, and the screen handles it in handle_info/2. The payload holds a touch position, so use hue_at/2 to get a hue. The phase field reports began on touch-down, dragging while the finger moves and ended on release. The dx and dy fields in the payload differ between iOS and Android, so build on x and y only.

def handle_info({:drag, :hue, %{x: x}}, socket) do
  {:noreply, Mob.Socket.assign(socket, :hue, MishkaHueSlider.hue_at(x))}
end

def handle_info(_msg, socket), do: {:noreply, socket}

The Mob version leaves these parts of the web slider out or changes them:

• The track is bands drawn on a canvas, where the web version puts a CSS linear-gradient on the track.
• on_commit is not ported, because the Mob bridge has no release event.
• step and large_step (keyboard nudging) are not ported.
• name and form are not ported. The id prop is a native test tag, not a DOM id.
