Anchor

A device has no <a> element, but it has navigation, so an anchor is a tappable Text with a destination. The component draws the label and, unless you turn it off, a rule under it. The children of the tag replace label when you give them.

The component does not open anything. A node tree only describes the screen, so side effects belong to the screen that receives the event. on_tap carries the destination as {tag, href}, which lets one handler serve every link on a page. Your screen handles it in handle_info/2 and does one of two things:

• For an external URL, call MishkaAnchor.open/1, which wraps Mob.Device.open_url/1.
• For another screen, call Mob.Socket.push_screen/3.

The underline

The rule is exactly as wide as the link. A Box told to fill its parent would span the whole card, so the component draws the rule the other way round. An outer Box in the link color hugs the text. The text sits on top of it, painted in backdrop, with a 1dp gap at the bottom where the link color shows through.

backdrop defaults to :surface, which is what a card or a sheet is made of. Set it to :background for a link on the bare screen. Without an underline, backdrop is never drawn.

Run this from your Mob app's root to add the component to lib/<app>/components/:

mix mishka.ui.gen.mob anchor

The generator registers the component's tag, so you can use it in ~MOB markup. It also copies the shared Event module. The examples on this page use the mishka_ prefix of the showcase app (--module-prefix mishka_), so the tag is <MishkaAnchor>. Without a prefix the tag is <Anchor>.

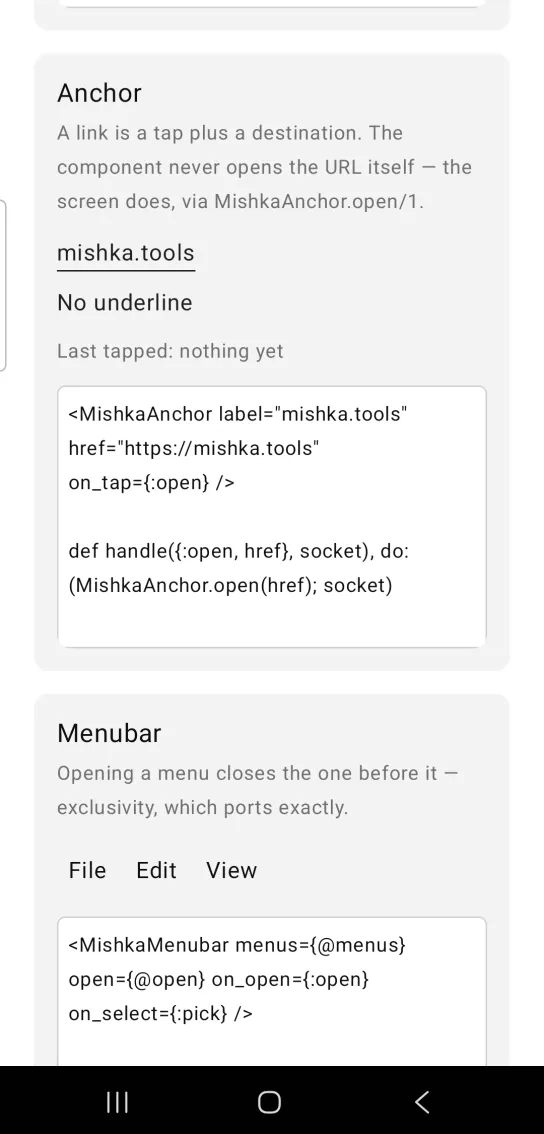

The anchor shows the label mishka.tools and carries https://mishka.tools as its href. When you tap it, the screen receives {:tap, {:open, href}} and decides what to do with the URL.

In the snippet, handle/2 is the showcase page's shorthand for a handle_info({:tap, {:open, href}}, socket) clause. In your own screen, write the handle_info/2 clause shown under Events.

Anchor that opens a URL

LTR RTL

Preview

Show the whole example Show less

<MishkaAnchor label="mishka.tools" href="https://mishka.tools" on_tap={:open} />

def handle({:open, href}, socket), do: (MishkaAnchor.open(href); socket)

MishkaAnchor.open/1 opens an external URL, which is what an href means on a device. It returns :ok after it calls Mob.Device.open_url/1. It returns :error for anything that is not an http or https URL, including nil, so a component never hands an arbitrary string to the platform's URL opener.

MishkaAnchor.open("https://mishka.tools")  #=> :ok
MishkaAnchor.open("ftp://example.com")     #=> :error
MishkaAnchor.open(nil)                     #=> :error

Your screen receives {:tap, {tag, href}} in handle_info/2, or {:tap, tag} when the anchor has no href. A disabled anchor sends nothing.

def handle_info({:tap, {:open, href}}, socket) do
  MishkaAnchor.open(href)
  {:noreply, socket}
end

The Mob anchor does not port these parts of the headless component:

• target, rel and download.
• navigate versus patch. It is a LiveView routing concept, and on a device the screen decides how to navigate.
